One PLC platform for all your dairy operation needs.
Whether you are building a new facility or just need to increase the efficiency of your current one. DairyLogix controls can help you save time, increase productivity, reduce waste, and take control of your Dairy.

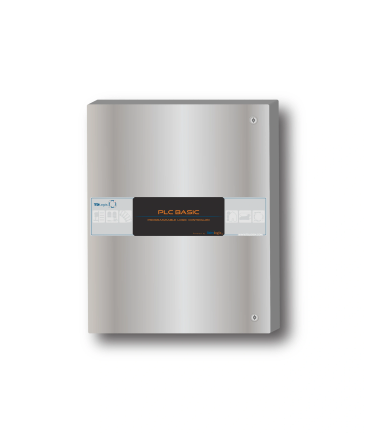

PLC Basic
PLC Preferred
Sophisticated control, small packaging. Made to run any DairyLogix system. With limited local I/O this is designed to run a small number of systems.

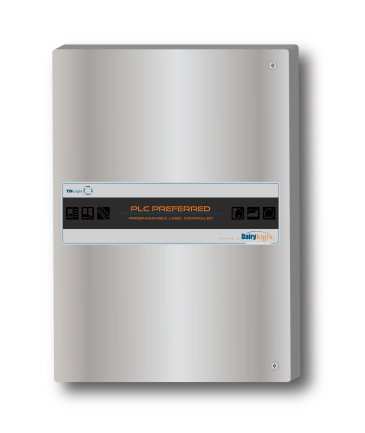

PLC Preferred
PLC Preferred
Stepping up to the Preferred system, gets you more local I/O, Ethernet IP connection points, and a battery backup for enhanced reliability. Made to run multiple systems in medium to large facilities.

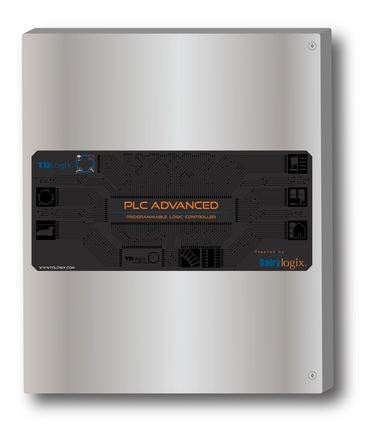

PLC Advanced
PLC Advanced
The most Advanced PLC system in the industry. Able to connect to hundreds of control points, this beast is made to run any size operation with unlimited possibilities.
Control + Visibilty
HMI Advanced
One Interface for all your information, settings, and control. This powerful and intuitive 15" HMI can interface with up to 4 PLCs and has VNC Capabilities for remote access.
Parlor Performance Rotary
Rotary Speed Control
Each pen of cows is different, one speed for all makes no sense. Leaving it to someone to manually change is even worse. Take Control by selecting a speed for each pen and let the PLC automatically make that change when the new pen begins milking.
Dynamic Rotary Control to automatically adjust speeds coming soon!
Take-Off Interface
By interfacing into your existing automatic take-off's we can pull important data about the efficiency of your parlor. This enables you to make informed decisions about how to control the speed of your rotary. Also available, Location Take-off. This forces the milking unit to shut off at an assignable location on the rotary to prepare for an automatic post sprayer.
Crowd Gate Interface
Counting cows that have loaded onto the rotary the crowd gate can be advanced according to what is happening on the rotary. Crowd gate advances and pauses are adjustable by pen, allowing you to make adjustments based on the size of each pen.
Export Data to the TDLogix Portal
All data collected by the system is made available on the TDLogix Portal web and mobile app. Real time data, historical, and alerts to critical issues are all available, helping you stay in control.

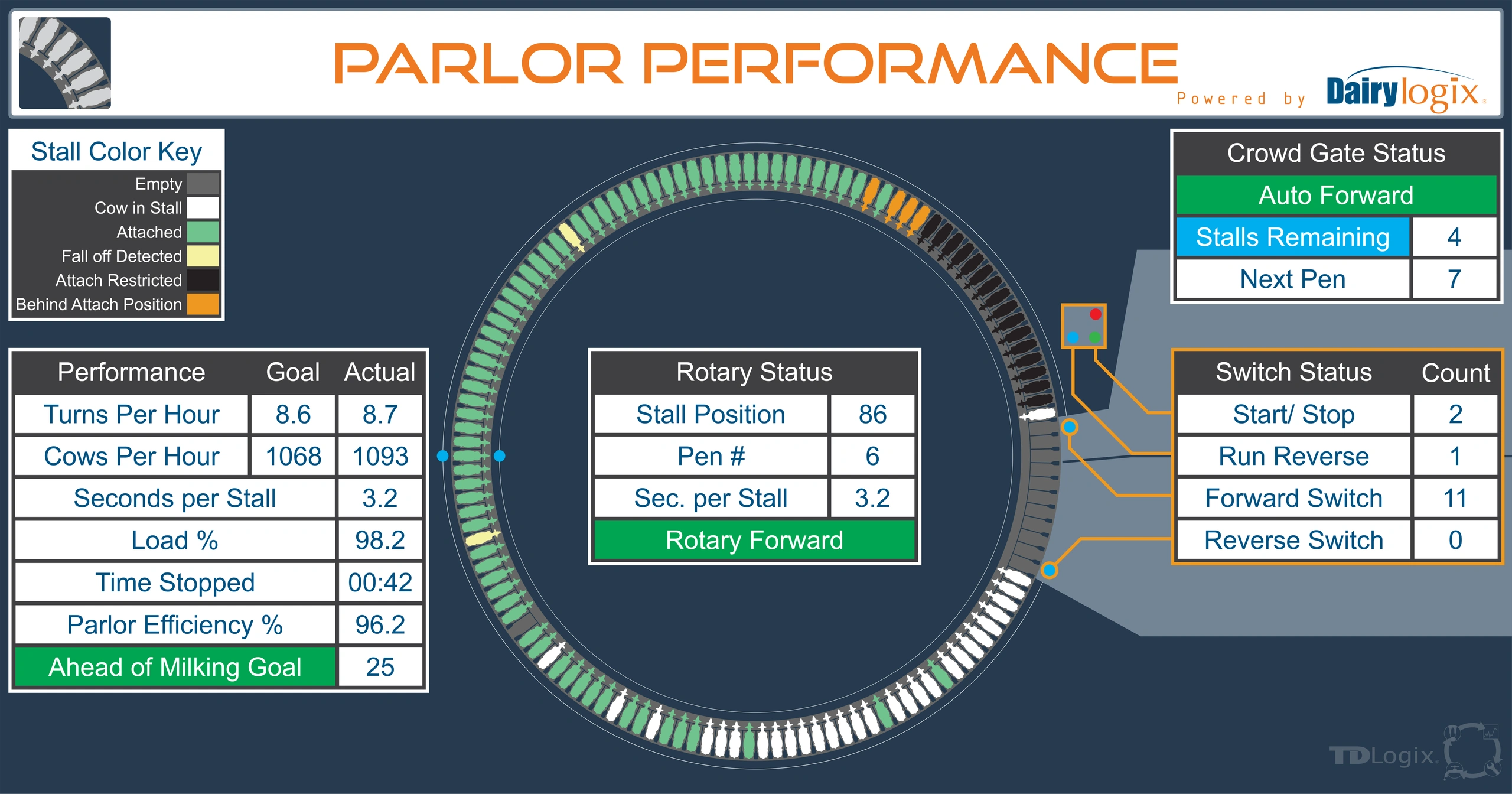

Parlor Performance Display
Live data displayed for your milking team, keeps them informed of goals and issues they need to address.
Live take-off status keeps them attaching in the proper location and indicates suspected early detached milking units for faster response to re-attach.
Proven results that speak for themselves.
More cows per hour.
Less stress on the animals. More consistent shift experience for your team.
Parlor Performance for conventional barns
Stall Control
With the automated assistance of the PLC to control the entrance and exit gates. Your team moves faster to do their job.
Take-Off Interface
By interfacing into your existing automatic take-off's we can pull important data about the efficiency of your parlor. This enables you to make informed decisions about how set milking goals, what are the bottle necks, and which sifts need more training.
Crowd Gate Interface
Timed forward movements only when the entrance gate is open keeps cows entering on their own. When the entrance gate is closed the crowd gate is idle. helping the cows to be more comfortable while waiting in the holding pen.
Export Data to the TDLogix Portal
All data collected by the system is made available on the TDLogix Portal web and mobile app. Real time data, historical, and alerts to critical issues are all available, helping you stay in control.
Milking System and Pipeline
Pipeline/ CIP Control
Many dairy operators depend on their chemical supplier to adjust their wash system or diagnose issues. With system flow diagrams right on the screen, easy to use parameters, available conductivity monitoring and TDLogix Portal reports, we put control back in your hands. Still want the expertise of your chemical provider? No problem. with multiple access levels for the HMI and the TDLogix Portal access can be provided to who you want.
Constant Flow Milk/Wash Vat
Steady milk flow through the plate heat exchange provides better cooling and less energy demand. Flow meter reports are also available on the TDLogix Portal for production per milking and when integrated with Parlor Performance production reports are also available by Pen.
User Friendly HMI Interface
Easy navigation on the HMI enables operators to easily return the Milking Menu to start and stop the milking system, start or cancel the wash system, and view the current status of the milking and wash systems.
Electronic Temperature Recording
Digital temperature recording has been around for some time. With the available TDLogix Portal it is easy to view historical data, filter by date range, find a specific date, and export to a CSV file.
Bulk Tank
Tank Monitor
With the automated assistance of the PLC to control the entrance and exit gates. Your team moves faster to do their job.
Tank Wash
By interfacing into your existing automatic take-off's we can pull important data about the efficiency of your parlor. This enables you to make informed decisions about how set milking goals, what are the bottle necks, and which sifts need more training.
Shipment Reports
When your shippers arrive to unload a tank, the systems will require them to enter some data into the system before the pump can run. This keeps a log of all loads leaving your farm. By having this redundancy to the scale weights dairymen have saved hundreds of thousands of dollars in potential missed shipments. Digital temperature recording has been around for some time. With the available TDLogix Portal it is easy to view historical data, filter by date range, find a specific date, and export to a CSV file.
Facility Automation
Holding Pen and Deck Flush
With the automated assistance of the PLC to control the entrance and exit gates. Your team moves faster to do their job.
Ventilation
By interfacing into your existing automatic take-off's we can pull important data about the efficiency of your parlor. This enables you to make informed decisions about how set milking goals, what are the bottle necks, and which sifts need more training.
Water System
Requested by one of Utah's largest dairies more than two decades ago. Our proprietary water control system limits the use of water used for cooling milk to only what is absolutely necessary. Water pump control and water usage reports are also available to integrate into the system.

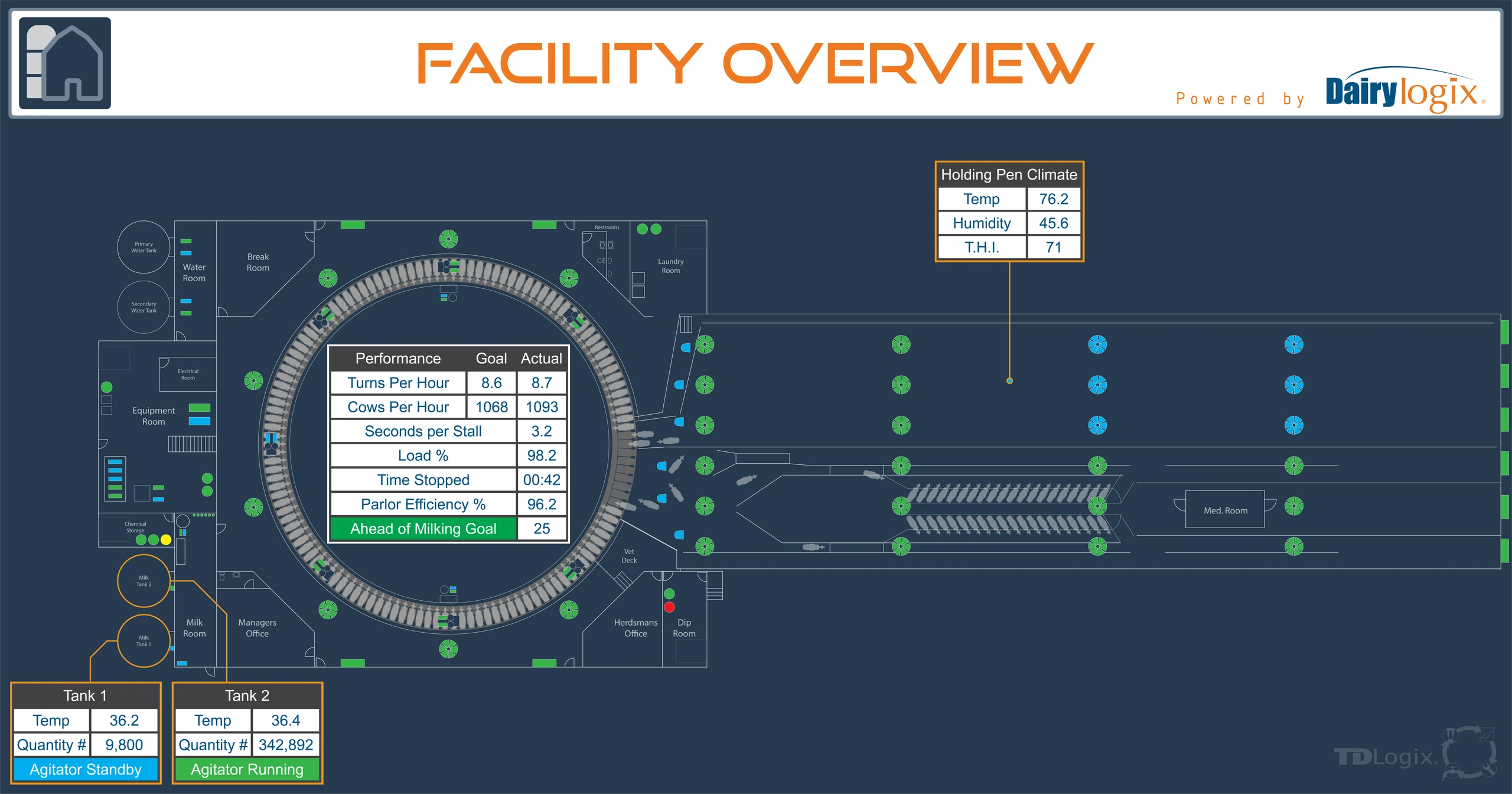

Facility Overview Display
Live data displayed for your team, keeps them informed of issues at a glance.
Keeps focus on the most critical areas of the facility.
Proven results that speak for themselves.
More cows per hour.
Less stress on the animals. More consistent shift experience for your team.
Cow Comfort
Ventilation
Fan speed control available with 0-10v, 4-20ma, or more advanced communication protocols like Ethernet IP
Curtains
Working in symmetry with the fan controls, keeps things simple from one control interface.
Soakers
Using THI (temperature, humidity Index) we follow the data from decades of industry researchers to provide precise control.
Foggers
Staging pumps to optimize cooling without exceeding the maximum humidity.
Full Opperation
Parlor
Full parlor automation from one platform, bringing consistency, reliability, and productivity to your parlor
Waste
We are experts in waste systems. Whether you are building a closed loop system, creating compost bedding, or need to record water leaving the dairy, DairyLogix has the solution.
Feed
Feed costs are huge! Monitor ben levels, grind corn, or mix rations. Our expertise can bring your vision to life.
Housing
Keeping cows comfortable is key to happy, healthy cows, and good milk production. Integrate housing control with the parlor automation to save electricity when the cows are in the parlor. Make sure flush water is always available by integrating the waste facility. Full operational automation keeps you in control and everything running smoothly.
